Features
Power Unit
- Deutz 2.9 Stage 5 (No AdBlue)
- 75hp/55kW
- 300Nm Torque
- Fuel: Diesel (60L capacity)
- Dedicated hydraulic oil cooler
Dimensions
- Length — Transport 3.392m | Working 3.864m
- Width — Transport 1.621m | Working 1.621m
- Height — Transport 2.6m | Working 2.6m
- Weight — 2700kg (Gross Trailer Weight < 3500kg)
Chipping Rotor
- 3 Pocket knife rotor
- Quick-change blade system
- Oversized bearings on the shaft
- Quick change biomass screen (G50 standard)
- 8% Chromium knives and anvil
- Hardox chamber construction
- Hardox wear liner in feed chute (replaceable)
Infeed System
- Feed Opening: 350mm x 450mm
- Auto-infeed system
- Top Feed Wheel: Aggressive Hardox teeth with twin hydraulic drive for unrivalled pulling power
- Bottom Feed Wheel: Aggressive Hardox teeth
- Feed Wheels: Forward and reverse functions
- Hydraulic Raise & Crush: Operated via rear hopper controls or remote control

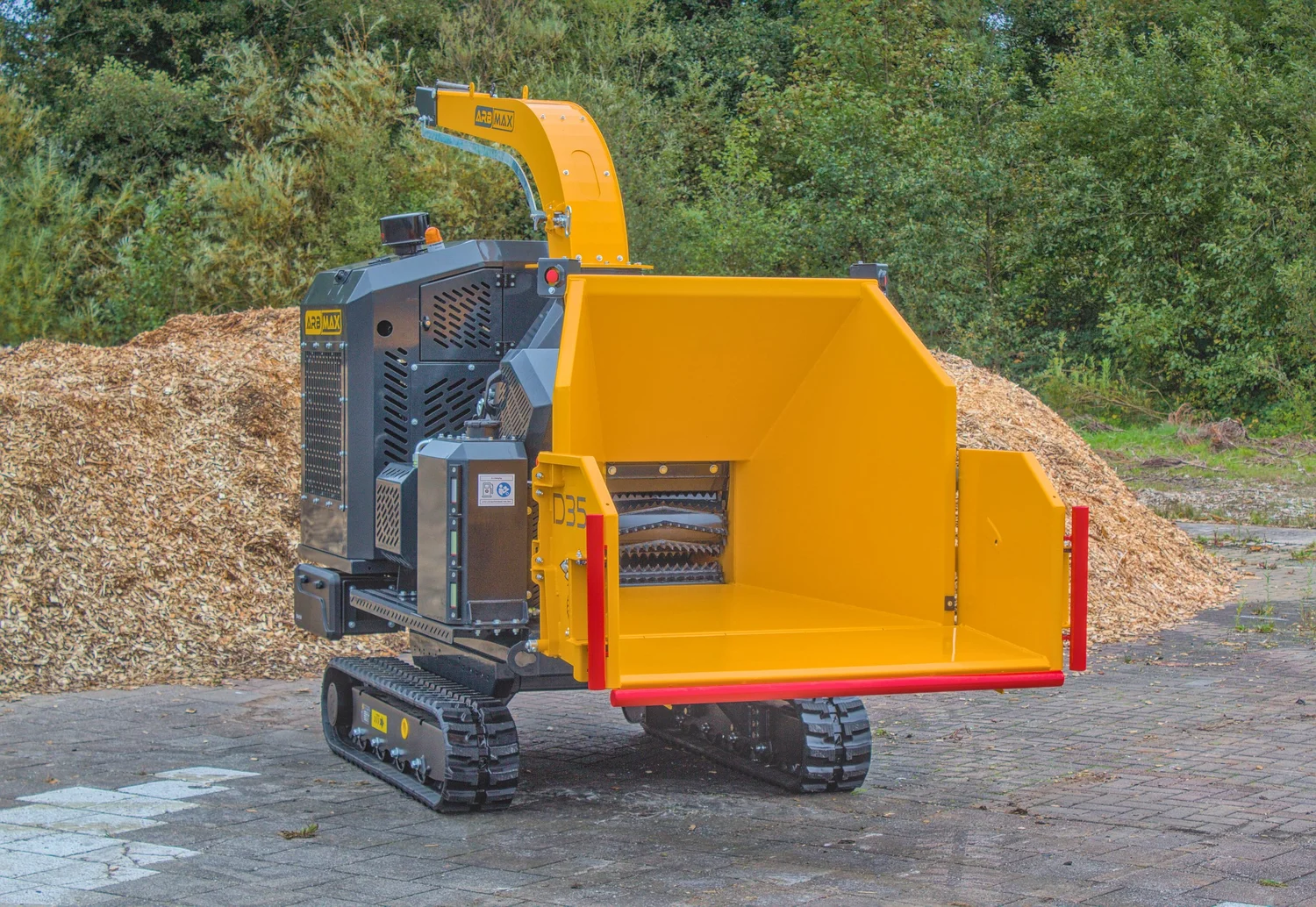

Hopper
- Oversized hopper for easy machine feeding
- 3 independent stop bars for safe hand feeding
- Stop bars can be deactivated for machine feeding
- Dual multifunction controls on the rear sides of the hopper
- Hopper folds for transport
- Manual raise/lower
- 2x Emergency Stop buttons at rear hopper
Discharge Chute
- 360-degree rotation
- Adjustable discharge flap
- Max Discharge Height: 2.6m
- Replaceable wear liners with a wear indicator
