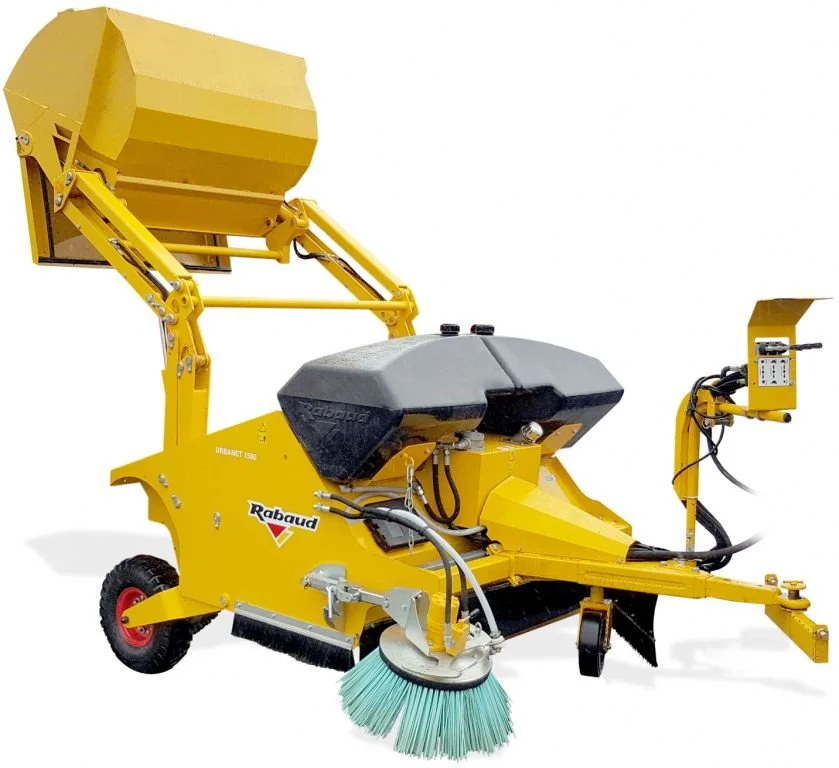

Rabaud URBANET 1500 G

Rabaud URBANET 1500 G

The URBANET 1500 G is specifically for small tractors (with a 3 way dual acting valve or optional PTO with 3 way dual acting valve) from 20 Hp. The hydraulic lift arm of 2100 mm height is perfect for emptying the collection into a dumper or trailer.

The sweeper’s frame is specifically for narrow roads and cycle paths with the sweep width of 1500 mm and the 600 mm diameter brush which is adjustable according to its wear.

It has a 1000 l (600 l use volume) collecting box with a visual control view.

Prices from £13,410.00 +VAT

Enquire Now
Specifications
Categories , Brand:

Features

  • NEW : Front brush to pick up all types of bulky waste (bottles, stones, plants, dust, etc.).
  • 1,50 m sweeping width.
  • Emptying height: 2.10 m thanks to the hydraulic lifting arm.
  • Designed for narrow streets, alleyways, cycle paths… in your town or city.
  • Mixed brush (polyester and polypropylene) Ø 600 mm. Adjustable in height depending on its wear.
  • 1000-litre grassbox (useful volume 600 litres) with fill control flap.
  • Ø 700 mm side brush in polyester, rilsan polyamide or flat steel for mechanical weeding (optional).
  • Gravity or pressure watering option with two 150 L water tanks.
  • ORGANIC oil  Panolin® (hydraulic unit with) : 15 000 hours lifetime.
  • Tractor pump drive with 3-way dual acting valve (for sweeping, lifting and tipping) or optional 540 rpm PTO with 3-way dual acting.
  • 2 oversized rear wheels + 1 depth control wheel.
  • Hydraulic sweeper up and down to switch between transport to sweeping position.
  • Suitable on low-power tractors (20 HP).
