Features
- Engine KUBOTA type: D1105 D1305 * dependent on model
- Fuel: Diesel
- Power in Kw / HP 18,5 / 25,1
- Machine width in mm 865 mm 895 mm 945 mm * dependent on model
- Crawler width in mm 200 mm – 230 mm* dependent on model
- 2 hydrostatic transmissions with closed circuit
- Transmissions with joystick control
- Travel speed fine regulator
- Ergonomic and reinforced travel levers
- Hydraulic oil cooler with electrical fan
- Auxiliary hydraulic circuit: flow in ltr/min 26 lt/min 27lt/min
- Auxiliary hydraulic circuit: pressure in bars 185 bars * standard
- Auxiliary hydraulic circuit with Hi Flow: flow in ltr/min 52 lt/ 58 lt/min *optional
- Auxiliary hydraulic circuit with Hi Flow: pressure in bars 280 bars * optional
- 2 x double acting hydraulic lines with a single lever
- 3 x double acting hydraulic lines with three levers * optional
- Quick couplings for connection of work equipment
- Floating position for mini loader electrically powered *optional
- Rubber lever handles
- Hydraulic oil level indicator visible from the outside
- Parking brake due to lack of pressure or by electric control
- Soundproof engine hood with lock
- Dual-cartridge air filter with clogging indicator
- Engine safety indicator with buzzer
- Reinforced chassis
- Load and tension rollers with grease nipples
- Double rocking rollers
- Reinforced long-life crawlers
- Battery isolator switch under the engine hood
- Reinforced 55 Amp / h battery

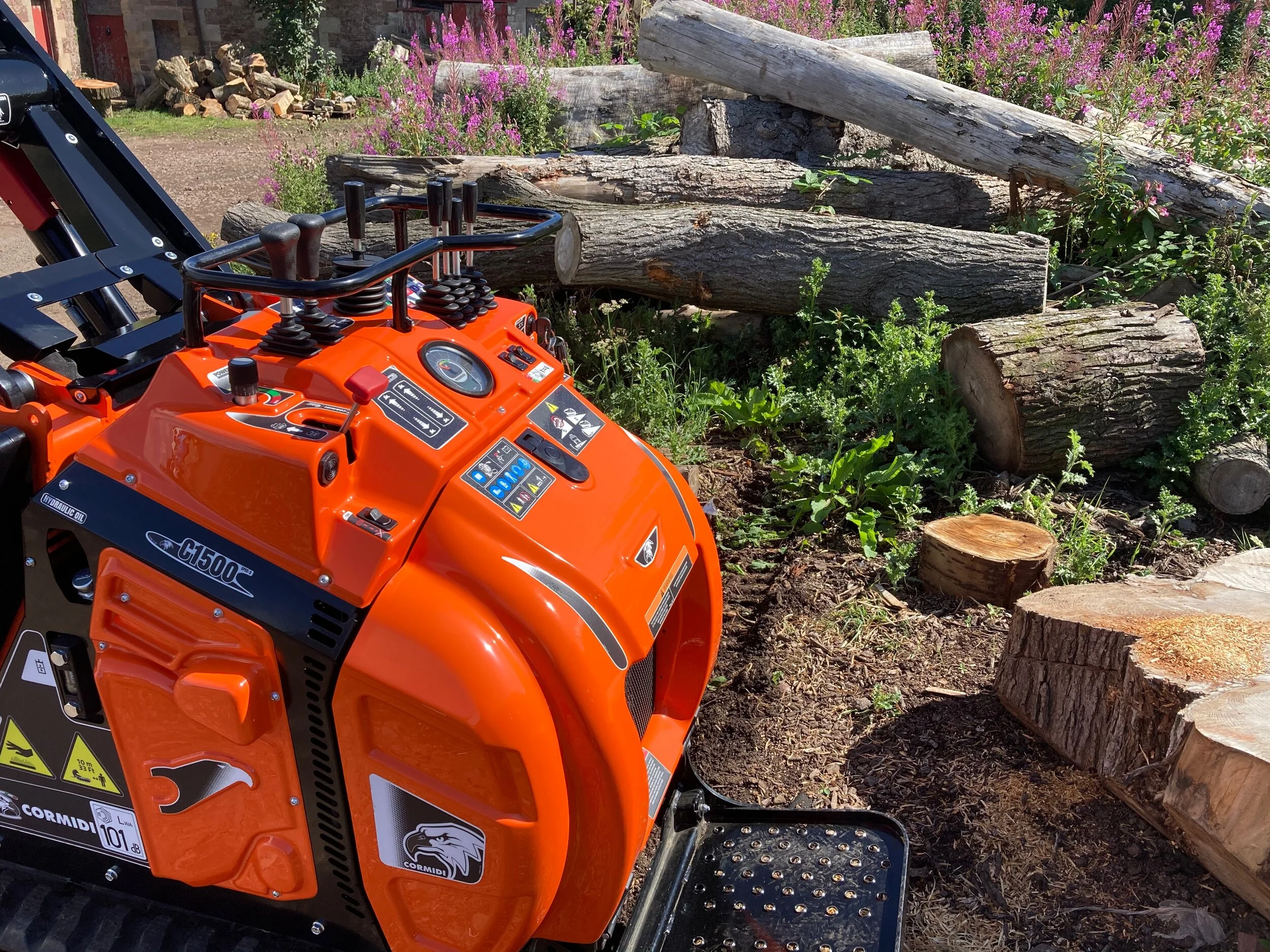

- CORMIDI digital dashboard
- Horn
- 12 volt external socket
- Foldable operator platform
- Lifting and lashing eyes
- Synthetic materials dashboard
- Acid resistant stickers
- Closed and waterproof document box
- Lockable fuel tank cap
