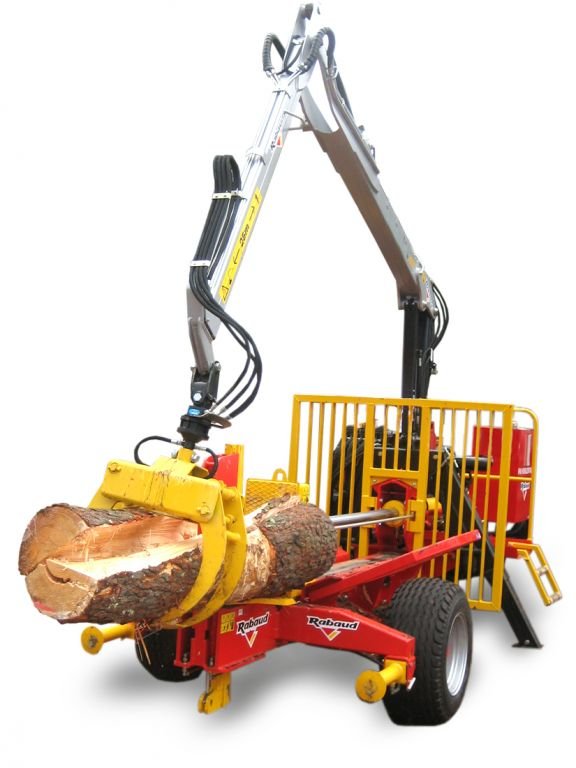

Rabaud HORIZONTAL F45

The F45 horizontal log splitter, driven by tractor PTO, has a splitting power of 45 tons with the added option of a forestry crane for lifting the logs.

The splitting can be done easily and efficiently with remote control from the driver’s cab. The 4-cross wedge is hydraulically adjustable in height.

The Hydraulic unit with double pump flow (100 L/mn), and oil tank: 150L. are delivered with oil and transmission shaft. It has a radio control unit for the splitting process and automatic cycle.

It has two wheels making it easy to tow by tractor and comes with a farm coupling ring ITR-150.

There is the added option of making this splitter road legal.

Prices from £35,410.00 +VAT

Features

  • Horizontal splitting process : power of 45 Tons.
  • 4-sided wedge.
  • Wedge with height hydraulic adjustment (50 cm range).
  • 2,60 m clearance to all diameters and large length logs.
  • Large V-shape splitting area.
  • Splitting via remote control with automatic cycle.
  • Hydraulic power pack with 100 l/min dual-flow pump, 150-litre oil tank with oil and cardan shaft.
  • Options : Forestry crane, transportation axle with 2 wheels, electric drive.
