QM TL HD Series

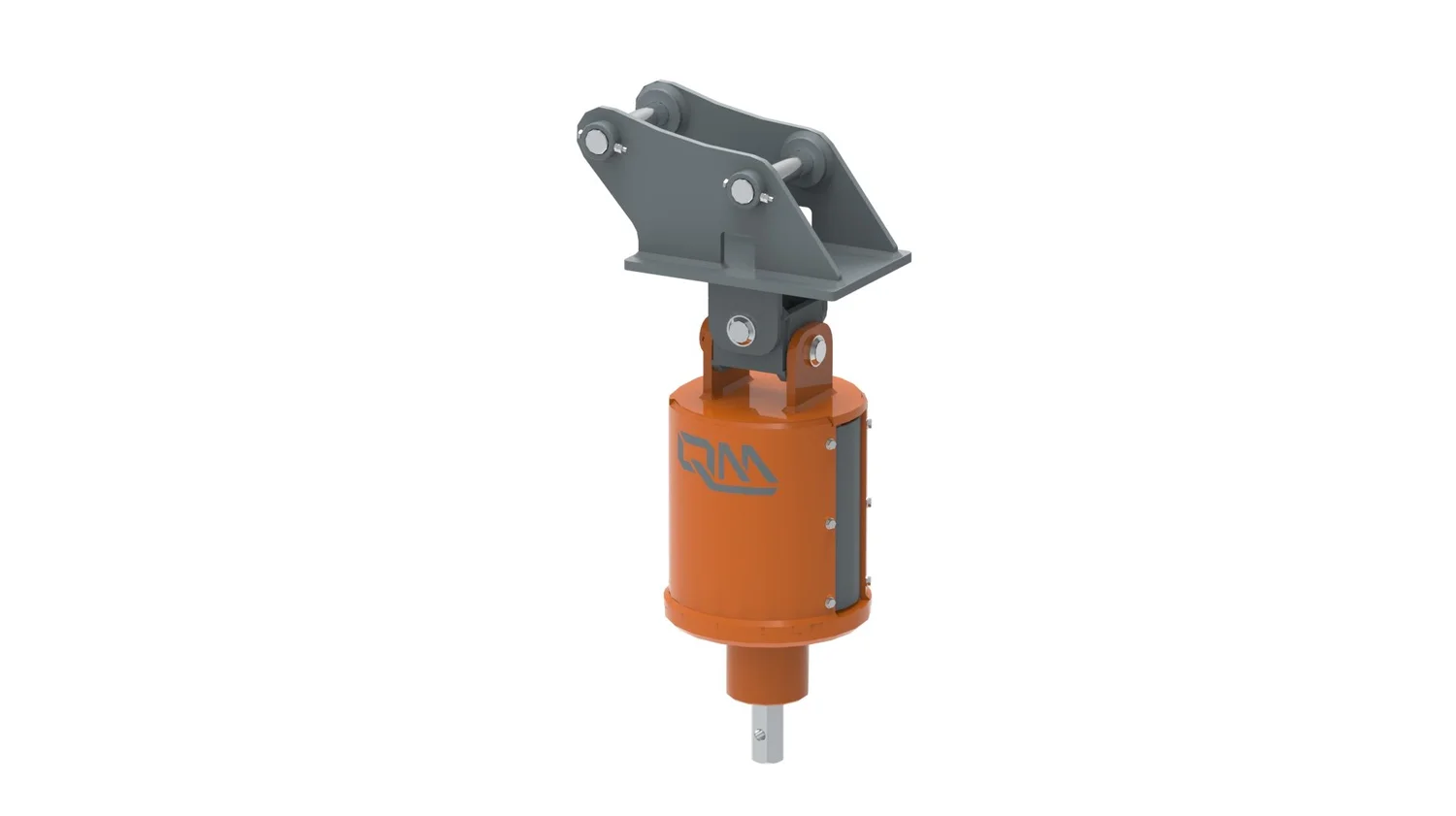

BIDIRECTIONAL hydraulic auger TL HD (Heavy Duty) series can be installed on operating machines from 0.8 to 10 tons. It is suitable in operations where a high radial load is applied to the gearbox, such as in handling large logs with the bevel screw or horizontal drilling with large-diameter bits.

Prices from £2,120.00 +VAT

Enquire Now
Specifications
Category Brand:

Features

  • Compact and wear-resistant body holding all components inside.

  • Heavy-duty gearmotor / tools interface support is resistant to high radial loads.

  • Front and rear openings to easily reach the internal components for better maintenance.

  • Front and rear protective casing.

  • Planetary gear motor for high performances even with low flow rates (only for TL2HD TL3HD TL4HD)

  • Hexagonal fitting allows a quick replacement.

  • The double-pin hitch, which includes a pendulum system and reversible double joint with locking (patented), allows the use of the auger in a horizontal position and with tools such as a wood splitter and stump planer.

  • Shockproof Valve

Video

Specifications

Download Here

Description

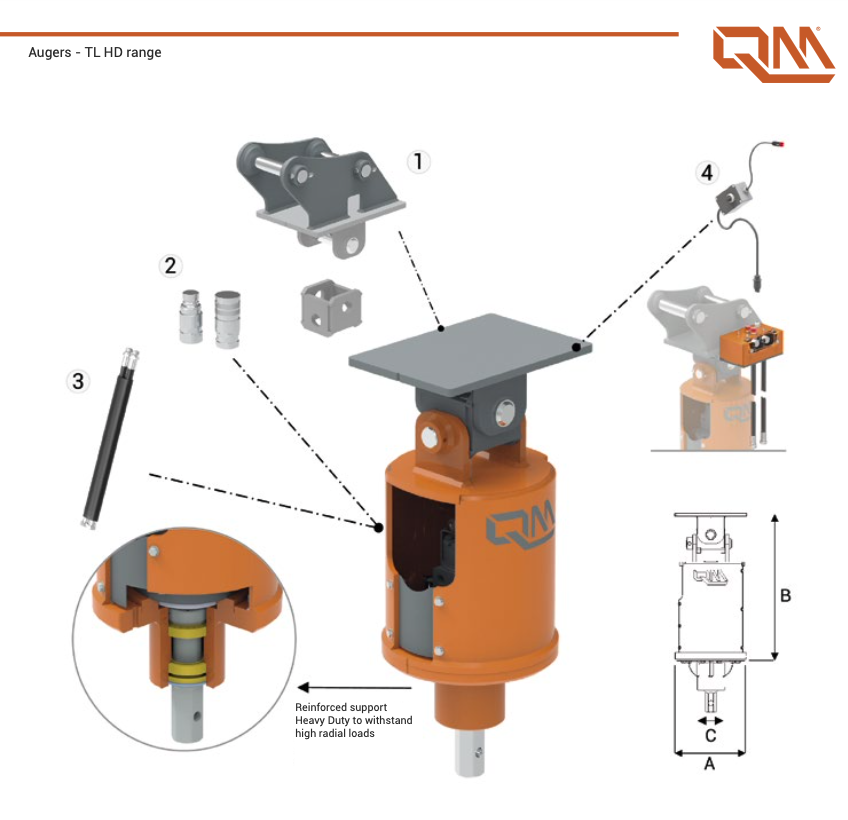

The Heavy Duty mount, designed and manufactured by QM, relieves the gearbox of any load, unloading forces onto the auger body. The double-pivot mount, designed by QM and covered by a “patent,” allows the auger to be used in heavy-duty work in “locked” mode with QM tools such as cone splitters and stump planer. The TL HD series comes with the shock valve but, at the same time, benefits from a wide range of available accessories that make this auger versatile in a wide variety of fields such as construction, green maintenance, and agriculture.
